Cornice 3"

Cornice 3"

Cornice 3"

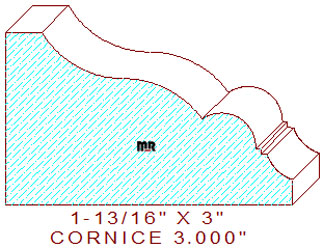

This embellished 3" cornice piece measures 3.000" wide by 1.813" thickness requiring eight-quarter lumber for milling. The beautiful profile is comprised of a 3/8" wide horizontal line on top, connected to a 1" radius cove tangent off of a 1-1/32" semicircular arc which creates the down sloping cyma recta in the center, attached to a 9/16" wide thumbnail shaped arc that transitions into a stepped and notched fillet with a 7/16" cove on the small side of the design.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.812
Depth of Cut: 0.333
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.000
Depth of Cut: 1.222
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.10
Not Needed
$260.50
Not Needed
Total:
$431.60
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$181.35
Not Needed
$275.50
Not Needed
Total:
$456.85
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$191.60
Not Needed
$290.50
Not Needed
Total:
$482.10
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
