Cornice Moulding 3-7/16"

Cornice Moulding 3-7/16"

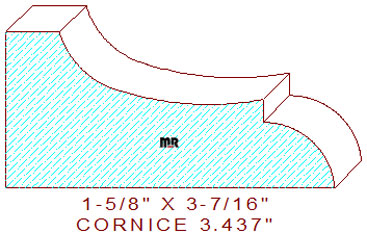

This embellished cornice moulding 3-7/16" measures 3.437" wide by 1.625" thickness. The profile requires eight quarter lumber to mill on an industrial moulder, it is comprised of a 9/16" wide horizontal line connected to a 15/16" radius, tangent off of a 3-1/8" radius arc forming an elliptical shaped cove, attached to a 11/64" tall vertical line with a 47/64" radius quarter round on the thin side of the design. We also have a smaller version of this detail that can be milled from five quarter lumber for your review and consideration, cornice 3.000" - 1.

This professionally drafted cad dxf file contains two high precision template designs to create cutters for this decorative cornice pattern. From just an idea in one's mind, to reality in their home, our moulding profiles reflect the beauty and style of your imagination, let us help you design a custom pattern today.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here.

Width = 3.437" / Depth of Cut = .803" (top knives).

Thickness = 1.625" / Depth of Cut = .717" (right blades).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
