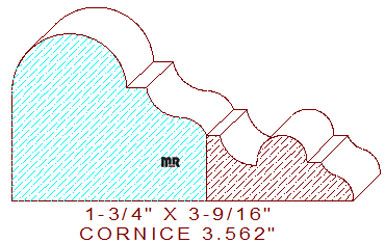

This ornate cornice moulding measures 3-9/16" wide by 1-3/4" thickness, the profile is composed of a half round bead at the thicker portion of the design, it is attached to a fillet, cyma recta, another fillet, cove, half round bead, fillet, and another smaller cyma recta at the thin side of the design. Because of the large size of the profile it will have to manufactured in two pieces as illustrated in the drawing above, two separate moulder sets is required, the smaller one will require four quarter lumber, the larger one will require six quarter lumber, you might consider a spline joint to connect them to one another during assembly.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
