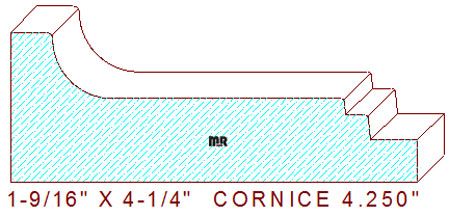

This cornice moulding measures 4-1/4" wide by 1-9/16" thickness, it can be installed under a stool cap nosing to enhance the design of the window casing, or it could also be utilized as a flat crown moulding or cornice build up design, the profile is composed 3-1/2" wide cong'e, and two stepped fillets that transition the elevation to a final thickness of 41/64". The profile is oriented on a industrial moulder with the thicker side up against the inside fixed fence, this way you can move your pressure shoe element forward laterally and seat the pressure shoe on the flat area of the cong'e for hold down.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
