Cove Moulding 2-3/4" - 4

Cove Moulding 2-3/4" - 4

Cove Moulding 2-3/4" - 4

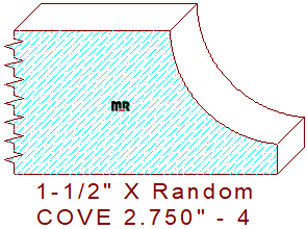

This side edge cove moulding 2-3/4" - 4 measures 1.500" thickness, necessitating the use of eight quarter lumber for milling on an industrial style molder, the width is adjusted to any desired size within the parameters of the machinery used to cut the pattern. The concave profile composes a 5/16" tall vertical line segment on the bottom right, connected to a 1-15/64" concave semicircle in the upper portion.

This professionally drafted cad dxf file (available for purchase in the box below) contains two high precision template designs to create cutters for this side edge detail, one design for the right the other for the left cutter head. From just an idea in one's mind, to reality in their home, our custom profiles reflect the creative style of your imagination, let us assist you in complementing your architectural decor with any of our attractive profiles.

Thinking about building an enclosed tool room for the profile knife grinder, template making machine and a place to store all your moulding templates and knives? Please read our helpful commentary on securing the knife grinder's linear bearings, this small simple task can save you thousands of dollars in repair cost from not securing the table bearings before moving.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = .000" / Depth of Cut = .000" (top knives) & .000" (bottom cutters.)

Thickness = 1.500" / Depth of Cut = 1.125" (right blades) & 1.125" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
