Cove 2-53/64"
Cove 2-53/64"

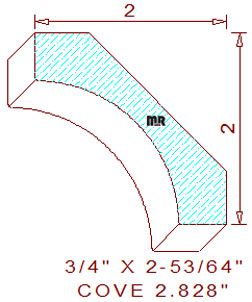

This well proportioned cove moulding measures 2-53/64" wide by 3/4" thickness, the symmetrical design is composed of a 1-1/2" radius cavetto positioned in the middle with 1/2" wide fillets on each side, when installed the height and projection are an identical 2" wide and tall, the spring angles are set at forty-five degrees
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.413
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.413
Top Cutter Head
Width: 4.813
Depth of Cut: 0.423
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$123.50
(Template not needed)
$332.28
Not Needed
Total:
$622.28
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$354.53
Not Needed
Total:
$663.53
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$147.25
(Template not needed)
$387.91
Not Needed
Total:
$725.41
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
