Cove Moulding 2-53/64" - 1
Cove Moulding 2-53/64" - 1

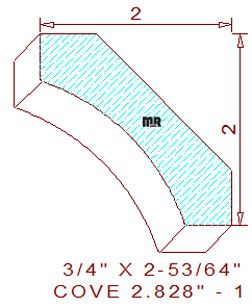

This beautiful cove moulding measures 2-53/64" wide by 3/4" thickness, the symmetrical design is composed of a 2-3/8" radius cavetto positioned in the center with 1/2" wide fillets on each side, when installed the height and projection retain the same 2" wide and tall measurement, the spring angles are fixed at forty-five degrees.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
