Cove Moulding 2-53/64" - 2

Cove Moulding 2-53/64" - 2

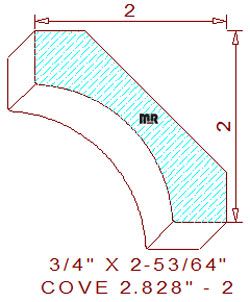

This symmetrical cove moulding measures 2-53/64" wide by 3/4" thickness, the profile design consist of a 1-1/2" radius cavetto positioned in the center with a 9/16" wide fillet on each side, when installed the height and projection retain the same 2" dimension with the spring angles fixed at forty-five degrees.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
