Cove 3-1/16"
Cove 3-1/16"

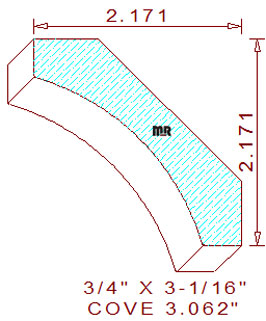

This standard 3-1/16" cove mould measures 3.062" wide by .750" thick. The symmetrical profile is comprised of a 2-9/16" radius cove in the center, flanked by a 27/64" tall vertical fillet on top, and a 27/64" wide horizontal fillet on the bottom of the pattern. The spring angles are fixed at forty-five degrees, search our bevels category by this degree to find a back bevel cutter appropriate for this cove/crown moulding design, these specific back bevels set the installed height and projection at an identical dimension of at 2-11/64" tall and wide.
Two high points in the detail were intentionally positioned on the same level plane. This specialized design feature will assure excellent hold-down conditions while milling the detail on an industrial moulder, providing the moulder pressure shoe is correctly set at the proper level to the machine's bed plates.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.473
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.473
Top Cutter Head
Width: 3.062
Depth of Cut: 0.370
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$123.50
(Template not needed)
$241.22
Not Needed
Total:
$531.22
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$256.47
Not Needed
Total:
$565.47
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$147.25
(Template not needed)
$279.34
Not Needed
Total:
$616.84
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
