Cove Mould 3-1/4" - 6

Cove Mould 3-1/4" - 6

Cove Mould 3-1/4" - 6

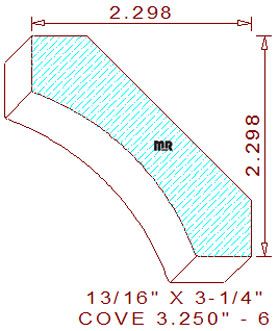

This 3-1/4" - 6 cove mould measures 3.250" wide by .812" thickness. The profile is comprised of a centered 2-13/16" radius cavetto flanked by 19/32" wide fillets. With the spring angles fixed at forty-five degree set the installed height and projection at just under 2-5/16" tall and wide. The two highest points in the design are positioned on the same level plane, creating superior hold-down conditions while milling the profile on an industrial moulder.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
