Cove 2-9/32"
Cove 2-9/32"

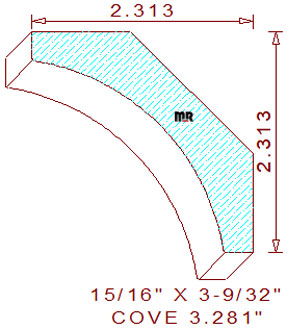

This symmetrical cove mould 3-9/32" measures 3.281" wide by .937" thickness, necessitating the use of five-quarter lumber for milling sprung (laying horizontally flat) on an industrial-style moulder. The concave profile is composed of a 2-3/8" radius concave semicircle in the center, flanked by a 5/16" tall vertical line on top and a 5/16" broad horizontal line on the bottom of the design. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height at an identical dimension of 2-5/16" tall and wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.733
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.733
Top Cutter Head
Width: 2.281
Depth of Cut: 0.458
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$200.61
Not Needed
Total:
$509.61
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$142.50
(Template not needed)
$212.74
Not Needed
Total:
$540.74
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$156.75
(Template not needed)
$230.92
Not Needed
Total:
$587.42
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
