Cove 3-15/32"

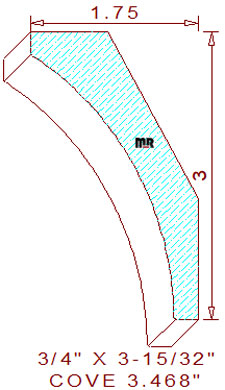

This tall concave 3-15/32" cove mould measures 3.471" wide by .750" thickness, allowing the detail to be milled sprung (laying horizontally flat) out of four quarter lumber. The elegant profile is composed of a 3-19/64" radius semicircular cove in the center, attached to a 1/2" tall vertical line on top and a 1/4" broad line at the bottom of the design. The spring angles are fixed @ twenty-eight & one-half & sixty-one & one-half degrees. These dedicated back cuts set the installed height to 3" and the projection to 1-3/4". Two high points in the detail were deliberately positioned on the same plane; our disciplined design features will assure excellent hold-down conditions while milling, as long as the pressure shoe is parallel to the machine bed-plates.

Architects, interior designers, lumber mills and manufacturers have been utilizing our vast variety of creative designs for years, we trust you will find that special profile to enhance the architectural style of your client's home. Download all our free moulding dxf files, see how easy the services we provide can increase productivity while reducing manufacturing cost.
