Cove 3-1/2" - 5
Cove 3-1/2" - 5

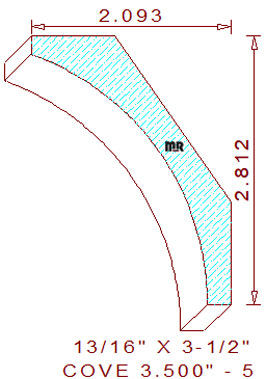

This creative 3-1/2" - 5 cove mould measures 3.500" wide by .812" thickness. The asymmetrical profile is comprised of a 2-25/32" radius arc in the center, connected to a 3/16" tall vertical fillet on the top and a 1/4" wide horizontal fillet at the bottom. The spring angles are fixed at thirty-five and fifty-five degrees, these specific back bevels set the installed height at 2-13/16" tall with a projection of 2-3/32" wide.
Utilize some of our user-friendly moulding profiles, all professionally designed by an accomplished woodworker with over thirty-five years of experience and a former Weinig field service technician. You will be able to manufacture high-speed steel or carbide profile knives literally within minutes after downloading this stylish pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.713
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.616
Top Cutter Head
Width: 3.500
Depth of Cut: 0.498
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$166.50
$264.00
Not Needed
Total:
$606.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$176.00
$281.00
Not Needed
Total:
$642.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$190.25
$306.50
Not Needed
Total:
$696.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
