Cove Moulding 3-29/32" - 3

Cove Moulding 3-29/32" - 3

Cove Moulding 3-29/32" - 3

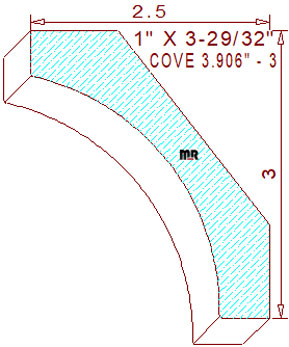

This gorgeous cove moulding 3-29/32" - 3 measures 3.906" wide by 1.000" thickness, enabling the pattern to be machined from five quarter lumber. The asymmetrical terminating profile is comprised of a 2-1/2" radius cove in the center, the upper portion retains a 15/32" tall vertical line on the top left, with a 17/32" wide horizontal line segment at the bottom right side of the pattern. The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels keep the inner profile parallel to the wall and ceiling as well as set the installed height at 3" tall with a projection of 2-1/2" wide.

Review our commentary about axial constant positioning for crown bevels, the article will help you dial this profile in axially provided the machine is properly calibrated. Two high points in the pattern layout were deliberately positioned on the same plane, our disciplined design features will assure excellent hold down conditions while milling as long as the pressure shoe is parallel to the machine bed-plates.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 3.906" / Depth of Cut = .568" (top knives).

Thickness = 1.000" / Depth of Cut = .565" (right blades) & .768" (left cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
