Cove 4" - 5
Cove 4" - 5

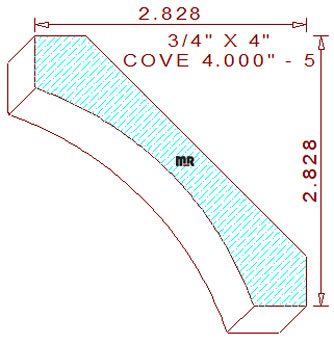

This charming 4" - 5 cove mould measures 4.000" wide by .750" thick. The symmetrical profile comprises a 3-23/32" radius cove in the center, attached to 17/32" tall and wide straight fillets at the top and bottom of the pattern. The spring angles are fixed at forty-five degrees. These specific back bevel cuts set the installed height and projection at an identical dimension of 2-53/64" tall and wide.
We offer thousands of innovative moulding profiles designed to save valuable time and money in your demanding milling production schedule. From just an idea in your mind to reality in your home, our profiles reflect the beauty and style of your imagination. Try one of our beautiful designs today.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.375
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.375
Top Cutter Head
Width: 4.000
Depth of Cut: 0.464
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$123.50
(Template not needed)
$290.00
Not Needed
Total:
$580.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$309.00
Not Needed
Total:
$618.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$147.25
(Template not needed)
$337.50
Not Needed
Total:
$675.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
