Cove Moulding 4-3/8"

Cove Moulding 4-3/8"

Cove Moulding 4-3/8"

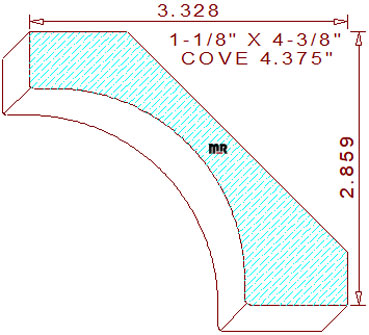

This embellishing cove/crown moulding 4-3/8" measures 4.375" wide by 1-1/8" thickness, permitting the detail to be machined sprung (laying horizontally flat) out of five or six quarter lumber. The concave profile is composed of a two inch radius cove in the center, attached to a 19/32" tall vertical line on top and a 1-1/16" wide horizontal line at the bottom, this lower area allows for utilizing one of our many base mouldings as a decorative backer. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height at 2-55/64" tall with a projection of 3-21/64" wide.

Mirror Reflections offers thousands of inspirational and compelling architectural mouldings that will shape the contour of every exquisite room in your client's beautiful home or office. Download all our free moulding dxf files, see how easy the services we provide can increase productivity while reducing manufacturing cost.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 4.375" / Depth of Cut = .805" (top knives.)

Thickness = 1.125" / Depth of Cut = .722" (right blades) & .390" (left cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
