Cove 4-1/2" - 1
Cove 4-1/2" - 1

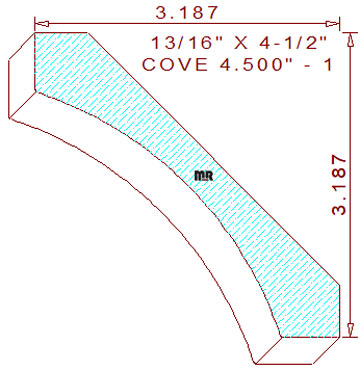

This 4-1/2" - 1 cove mould measures 4.500" wide by .812" thick. The symmetrical profile is comprised of a 4" radius cavetto in the center, connected to a 5/8" tall vertical line at the top and a 5/8" broad line at the bottom. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height and projection at an identical dimension of 3.187" tall and wide.
Two high points in the design were intentionally positioned on the same level plane. Our dedicated design features will assure excellent hold-down conditions while milling the detail on an industrial moulder, providing the moulder pressure shoe is parallel to the bed plates. Utilize any of our patterns to create a stylish moulding catalog for your millwork company, offer more eye-catching profiles to your clients while reducing production cost spent on knife design. Let us help you transform that beautiful house under construction into an elegant home.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.388
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.338
Top Cutter Head
Width: 4.500
Depth of Cut: 0.656
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$123.50
(Template not needed)
$337.00
Not Needed
Total:
$627.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$358.00
Not Needed
Total:
$667.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$147.25
(Template not needed)
$389.50
Not Needed
Total:
$727.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
