Two high points in the design were deliberately positioned on the same plane, our superior design features will assure excellent hold down conditions while milling the detail on an industrial moulder providing the moulder pressure shoe is parallel to the bed plates. Download all our free moulding dxf files, see how easy the services we provide can increase productivity while reducing manufacturing cost.
For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is located here.

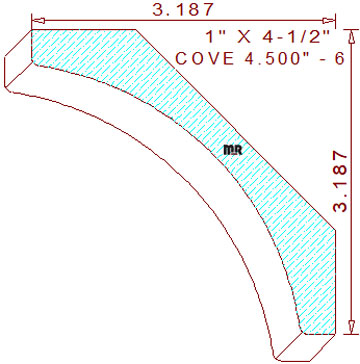

Width = 4.500" / Depth of Cut = .651" (top knives).
Thickness = 1.000" / Depth of Cut = .770" (right blades) & .770" (left cutters), only one template is required for the left and right cutters.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
