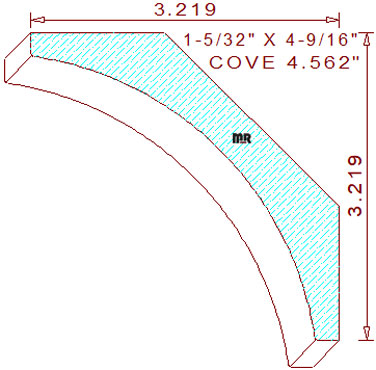

This detail is comprised of a 3-1/2" radius cove in the center, attached to a 1/4" wide tall vertical fillet at the top, and a 1/4" wide horizontal line at the bottom. The spring angles are fixed at forty-five degrees, these bevels set the installed height and projection at an identical dimension of 3-7/32" tall and wide. The two high points in the design were intentionally positioned on the same level plane, our disciplined design features will create optimal hold down conditions while milling the pattern on an industrial style moulder, provided the pressure shoe is parallel to the bed plates.
We pride ourselves on providing some of the finest quality acrylic templates & profile knives in the woodworking industry, with excellent customer service and affordable pricing. Offer us an opportunity to demonstrate our abilities, you will be pleasantly surprised with our services.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
