Cove Moulding 4-19/32" - 1
Cove Moulding 4-19/32" - 1

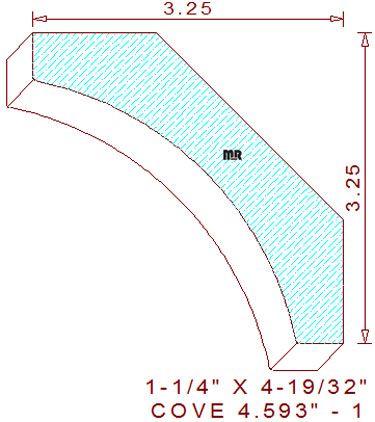

This cove/crown moulding measures 4-19/32" wide by 1-1/4" thickness, the symmetrical profile consist of a 3-1/2" radius cavetto in the center, and a 1/2" wide fillet on both, top and bottom of the design, height and projection are identical at 3-1/4", spring angles are set at 45 degree.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
