Cove Moulding 4-7/8" - 1

Cove Moulding 4-7/8" - 1

Cove Moulding 4-7/8" - 1

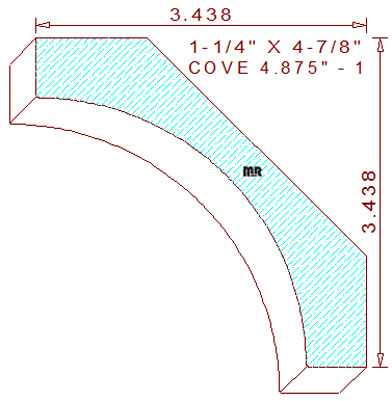

This Cove/Crown Moulding 4-7/8" - 1 measures 4.875" wide by 1.250" thickness. The symmetrical shaped profile is comprised of a 2-13/16" radius cavetto positioned in the center flanked by 5/8" vertical and horizontal fillets, the spring angels are fixed at forty-five degree which will set the installed height and projection at an identical dimension of 3-7/16" tall and wide. All custom moulding knife template designs have ten-millimeter (.394") axial constant positioning to increase accuracy and reduce moulder setup time throughout production.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
