Cove Moulding 4-15/16"

Cove Moulding 4-15/16"

Cove Moulding 4-15/16"

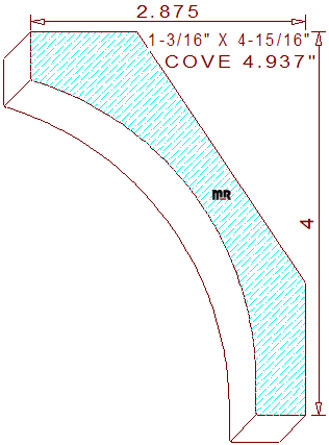

This tall cove molding 4-15/16" measure 4.924" width by 1.187" thickness, necessitating the use of six quarter lumber for milling sprung (laying horizontally flat) on a commercial-grade molder. The robust terminating profile contains a 1/2" tall vertical line segment on the top left. The fillet connects to a 3-9/32" radius cove in the center with a 17/32" wide flat line on the design's bottom right side. The set spring angles are at thirty-four and fifty-six degrees these dedicated back bevels are included in the downloadable dxf file available below; they also keep the face side of the profile parallel to the wall and ceiling when installed; as well as lock in the positioned height at 4" tall with a projection of 2-7/8" across the top.

Mirror Reflections has over thirty-five years’ experience in designing and manufacturing some of the finest quality acrylic templates and profile knives in the woodworking industry. Encounter our excellent customer service with affordable pricing by offering us an opportunity to demonstrate our abilities; you will be pleasantly impressed with our services.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 4.937" / Depth of Cut = .743" (top knives).

Thickness = 1.187" / Depth of Cut = .681" (right blades) & 1.250" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
