Cove Moulding 4-15/16" - 1

Cove Moulding 4-15/16" - 1

Cove Moulding 4-15/16" - 1

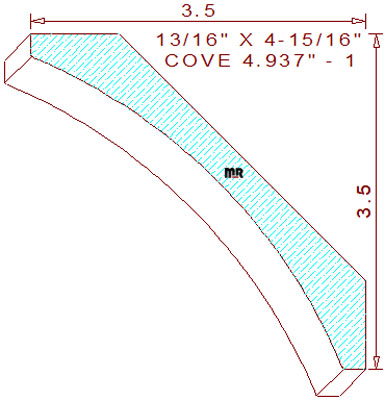

This medium-sized cove molding 4-15/16" - 1 measure 4.950" width by .812" thickness allowing the use of four quarter lumber for milling sprung (laying horizontally flat) on a commercial-grade molder. The shallow symmetrical terminating profile contains a six-inch radius cavetto in the center, flanked by a 1/4" vertical fillet on the top left and a 1/4" horizontal line segment on the bottom right side of the design. The set spring angles are at forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 3-1/2" tall with a projection of 3-1/2" across the top.

Are you a molding manufacturer? Please add your company information to our millwork suppliers map; this valuable resource will help potential customers in your area experience the creative craftsmanship of your woodworking shop. Did you know you can connect our substantially sized moulding profile catalog to your website? It is free; why not offer your clients beautiful wood pattern designs that will enhance the grace and luxury of their elegant home.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 5.000" / Depth of Cut = .454" (top knives).

Thickness = .812" / Depth of Cut = .652" (right blades) & .652" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
