Cove 5"

Cove 5"

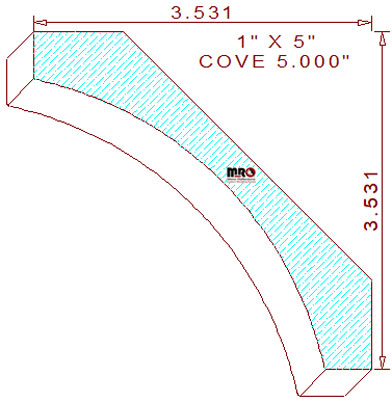

This beautiful 5" cove mould comprises a 3-61/64" radius cavetto in the center. It's flanked by a 1/2" tall vertical segment on the top left and a 1/2" wide area on the bottom right corner of the design. The spring angles are at forty-five degrees; the dedicated back bevels keep the face sides of the pattern parallel to the wall and ceiling. These specific back angle positions lock the installed height at 3-17/32" tall with a 3-17/32" projection across the top. The pattern measures 5.000" in width by 1.000" in thickness. The recommended rough wood rip-size milling sprung (laying horizontally flat) using five-quarter lumber is 5.250" wide.
The present-day combined high-speed steel knives & profile template prices are listed below for quoting purposes. On most of our cove, crown, and bed mould designs, we utilize a full 2.375"/60mm cutter head for the back cut angles to allow for multiple axial adjustments on a wide range of patterns.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.665
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.665
Top Cutter Head
Width: 5.000
Depth of Cut: 0.625
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$342.00
Not Needed
Total:
$651.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$142.50
(Template not needed)
$365.00
Not Needed
Total:
$693.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$156.75
(Template not needed)
$399.50
Not Needed
Total:
$756.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
