Cove 5-7/32"
Cove 5-7/32"

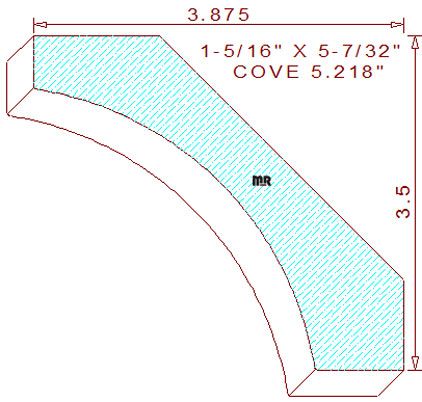

This medium-sized 5-7/32" cove mould measures 5.218" wide by 1.312" thick. The profile features a 15/16" wide horizontal fillet at the bottom, a 9/16" tall vertical fillet at the top, and a 3-1/2" radius cavetto in the center. Height when installed is 3-1/2", projection is 3-7/8", spring angles are 45 degrees. You could make the design symmetrical by simply placing a 3/8" thickness piece of trim under the wide fillet on the bottom to enhance the architectural appeal.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.931
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.665
Top Cutter Head
Width: 5.250
Depth of Cut: 0.750
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$379.00
Not Needed
Total:
$688.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$142.50
(Template not needed)
$403.00
Not Needed
Total:
$731.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$156.75
(Template not needed)
$439.00
Not Needed
Total:
$795.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
