Cove Moulding 5-7/16"

Cove Moulding 5-7/16"

Cove Moulding 5-7/16"

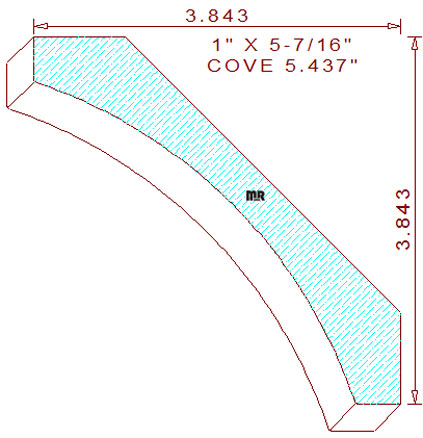

This Custom Cove/Crown Moulding 5-7/16" measures 5.437" wide by 1.000" thickness which will require five quarter lumber to mill this detail on an industrial style moulder. The symmetrical profile is comprised of a slightly under 1/2" vertical and horizontal fillet located on top and bottom with a 5-5/16" radius cove/cavetto positioned in the middle of the pattern. The spring angles are fixed at forty-five degree which sets the installed height and projection at an identical dimension of 3-27/32" tall and wide.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
