Cove Moulding 5-1/2" - 4

Cove Moulding 5-1/2" - 4

Cove Moulding 5-1/2" - 4

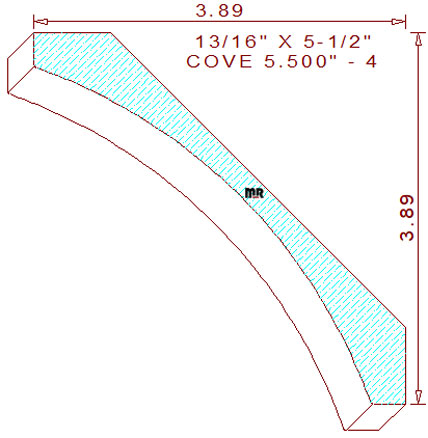

This prestigious cove moulding 5-1/2" - 4 measures 5.500" width by .813" thickness, allowing the use of a 5-3/4" blank of four-quarter lumber for milling sprung (laying horizontally flat) on a commercial moulder. The beautiful pattern composes a 5-3/4" radius concave semicircle in the center. The cove connects to a 3/8" line segment on the design's upper left and bottom right corners. The set spring angles are at forty-five degrees; the dedicated back bevels keep the face sides of the design parallel to the wall and ceiling after installation. These specific angles lock in the height at 3-57/64" tall with a 3-57/64" projection across the top.

Look for a few other profile designs for different rooms in your beautiful, stylish home, with over 15,000 patterns in our search by size molding catalog there is something for everyone's creative architectural style. Utilize our manufacturers map listed by states to help you locate a mill in your area to produce any of our attractive profiles.

For knife quoting purposes, click the calculator below; we supplied the important measurements; please insert the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, feel free to print a copy of our fraction - decimal - millimeter chart, place it on the machinery around the shop to help operators save time and increase accuracy during setup procedures.

Width = 5.500" / Depth of Cut = .562" (top knives).

Thickness = .812" / Depth of Cut = .565" (right blades) & .565" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
