Cove Moulding 5-21/32"

Cove Moulding 5-21/32"

Cove Moulding 5-21/32"

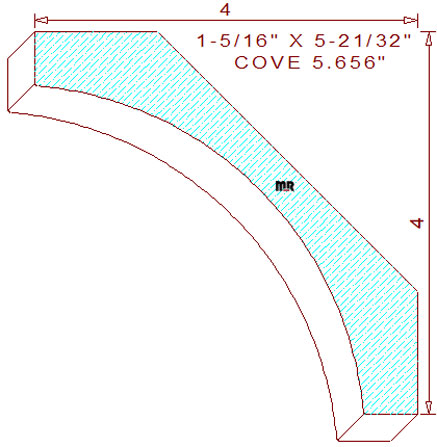

This beautiful cove moulding 5-21/32" measures 5.657" wide by 1.312" thickness, enabling the pattern to be machined out of six quarter lumber. The attractive symmetrical profile consists of a 9/16" tall vertical line segment on the top left, joined to a 3-3/4" radius cove in the center, connected to a 9/16" wide horizontal line segment on the lower right side of the design. The spring angles are fixed at forty-five degrees, these explicit back bevels keep the inner profile parallel to the wall and ceiling as well as set the installed height at 4" tall with a projection of 4" wide.

Are you a moulding manufacturer? If so, please add your company to our millwork suppliers map, this valuable resource will help potential customers experience the craftsmanship of your creative woodworking shop. Did you know you can connect our substantial moulding catalog to your website? It's free, offer your clients profile designs they don’t even know exists.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 5.687" / Depth of Cut = .878" (top knives.)

Thickness = 1.312" / Depth of Cut = .929" (right blades) & .929" (left cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
