Cove 5-21/32" - 2
Cove 5-21/32" - 2

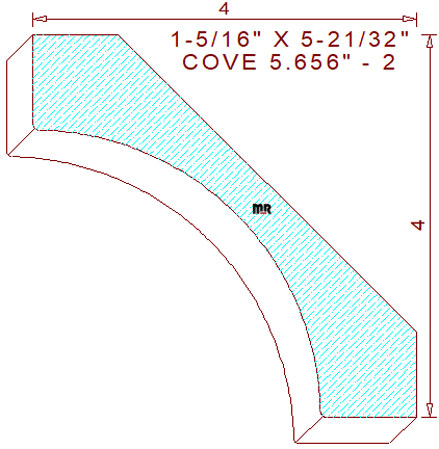

This beautifully bold 5-21/32" - 2 cove mould measures 5.656" wide by 1.312" thickness, necessitating the use of six quarter lumber for milling on an industrial moulder. The hefty terminating symmetrical profile is composed of a one-inch-tall vertical line segment at the top left, joined to a three-inch-radius cove in the center, and connected to a one-inch-wide horizontal line segment at the bottom right. The spring angles are fixed at forty-five degrees, these specific back bevels keep the inner profile parallel to the wall and ceiling as well as set the installed height at 4" tall with a projection of 4" wide.
Try one of our 125% concentration ultimate CBN (cubic boron nitride) grinding wheels, finish grinding at 3000 rpm with a twenty-degree back clearance angle will create a superior micro edge on all your high-speed steel profile knives. Read this article or watch the videos to help better understand how to align a borazon wheel to axial constant position on a Weinig R960 profile grinder. During the machining process, the knives will be able to mill some of the finest-quality architectural mouldings you have ever produced.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.631
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.631
Top Cutter Head
Width: 5.625
Depth of Cut: 0.809
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$400.00
Not Needed
Total:
$709.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$142.50
(Template not needed)
$425.50
Not Needed
Total:
$753.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$156.75
(Template not needed)
$463.75
Not Needed
Total:
$820.25
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
