Cove 6-1/8"
Cove 6-1/8"

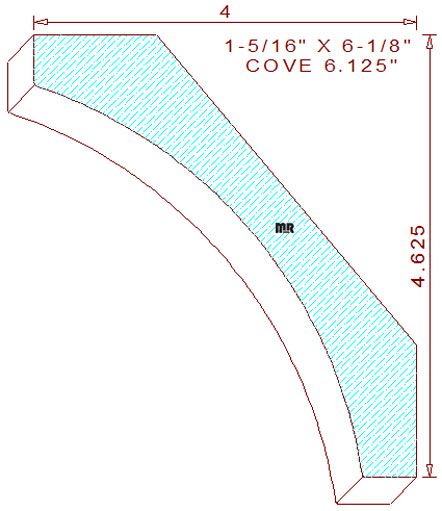

This larger 6-1/8" cove mould measures wide by 1-5/16" thickness, you can successfully mill this pattern out of six quarter lumber, the profile is composed of a slightly over 5-1/16" radius cavetto flanked by a 17/32" tall fillet on top and a 9/16" wide fillet on the bottom. The spring angles are fixed at forty and fifty degrees which set the installed height at 4-5/8" tall with a projection of 4" wide. The high points are positioned on the same plane, creating favorable hold-down conditions during milling of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.982
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.982
Top Cutter Head
Width: 6.125
Depth of Cut: 0.750
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$176.00
$428.00
Not Needed
Total:
$780.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$185.50
$455.50
Not Needed
Total:
$826.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$199.75
$496.75
Not Needed
Total:
$896.25
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
