Cove Moulding 7" - 1

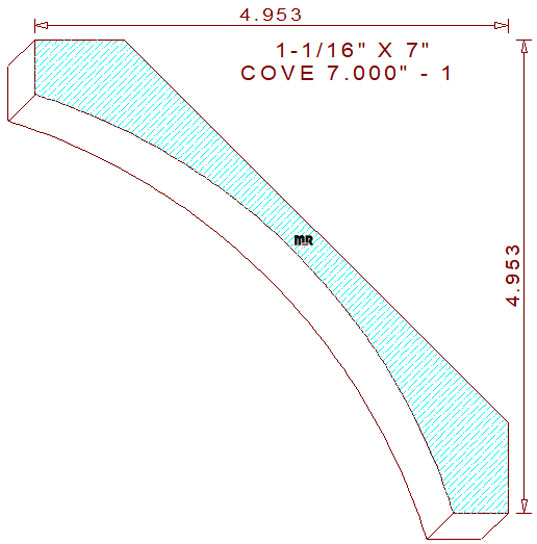

This decorative cove moulding 7" - 1 measures 7.000" wide by 1.062" thickness, enabling the pattern to be milled out of five quarter lumber. The large attractive terminating profile is composed of a 6-11/16” concave semicircular arc, leaving a 5/16” thickness dimension in the center, flanked by a 37/64” tall vertical line on the top left, and a 37/64” wide horizontal line segment on the bottom right side of the design. The spring angles are fixed at forty-five degrees, these explicit back bevels keep the face side of the profile parallel to the wall and ceiling when installed, they also lock in the positioned height at 4-61/64" tall with a projection of 4-61/64" wide.

Architects, interior designers, contractors, lumber mills, cabinet shops and molding manufacturers have been utilizing our vast variety of moulding designs for years, we trust you will find that special profile to enhance the architectural style of your client's home or office. Download all our free dxf files, see how easy the services we provide can increase productivity while simultaneously reducing manufacturing cost.

For moulding knife quoting purposes click to open the calculator below, we supplied only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 7.000" / Depth of Cut = .750" (top knives).

Thickness = 1.062" / Depth of Cut = .668" (right blades) & .668" (left cutters).
