Cove Moulding 7-3/16"

Cove Moulding 7-3/16"

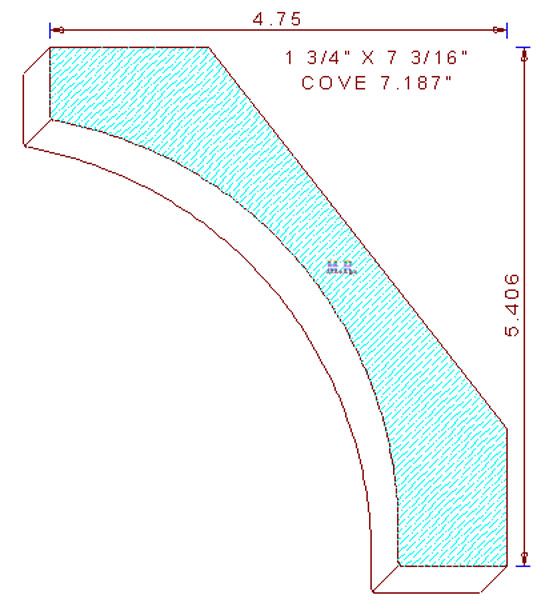

This Cove/Crown Moulding 7-3/16" measures 7.187" wide by 1.750" thickness, the profile is comprised of a 4.352" radius cavetto that is flanked by a 3/4" tall vertical fillet on top and a 1-1/8" wide horizontal fillet at the bottom. With the spring angles fixed at thirty-eight and fifty-two degrees they set the installed height at 5-13/32" tall with a projection of 4-3/4" wide, two points in the design are intentionally positioned on the same level plane, this specialized design feature will assure superior hold down conditions while milling the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
