Cove Moulding 7-7/32"

Cove Moulding 7-7/32"

Cove Moulding 7-7/32"

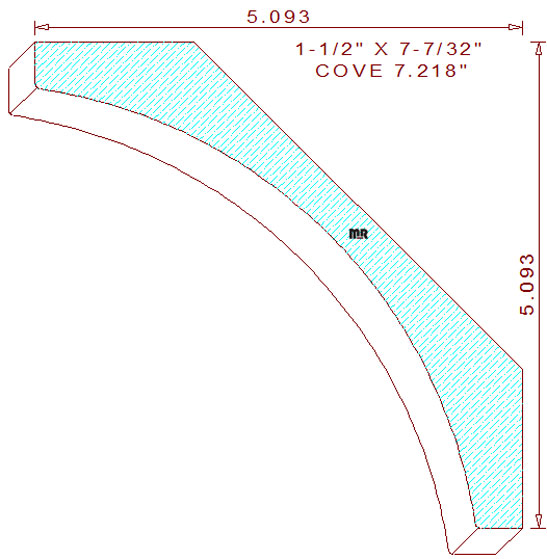

This Cove/Crown Moulding 7-7/32" measures 7.218" wide by 1.500" thickness, with a 1.071" depth of cut on the top horizontal set of moulding cutters. Please look in our bevels category, (search by degree) for a set of beveled moulding cutters appropriate for this profile design. We have intentionally designed all our crown and cove mouldings with back bevels of forty-five degree and under to be milled on the right vertical cutter head, all forty-five degree back bevels and higher will be milled on the left vertical cutter head on an industrial style moulder.

The symmetrical custom profile is comprised of a 5-13/32" radius cavetto, attached to a 1/2" tall and wide, vertical and horizontal fillets positioned at the top and bottom of the pattern. The spring angles are fixed at forty-five degree, these specific bevels set the installed height and projection at an identical dimension of 5-3/32" tall and wide.

Please read our commentary about Axial Constant Position for Crown Moulding Bevels, this article will help you dial this profile in axially on the first try when milling this detail on an industrial style moulder, provided the moulder is axially calibrated.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
