Cove 7-25/32"
Cove 7-25/32"

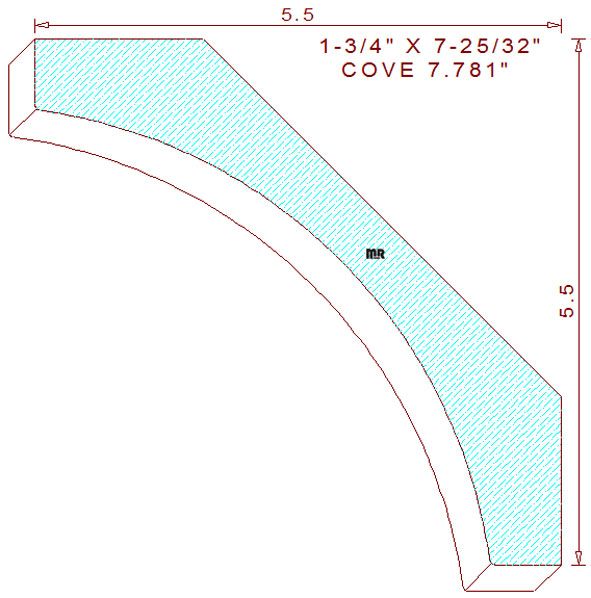

This symmetrical 7-25/32" cove mould measures 7.781 " wide by 1.750" thick. The profile is comprised of a roughly 5-1/2" radius cavetto that is flanked by 3/4" wide fillets, the spring angles are fixed at forty-five degrees which makes the installed height and projection 5-1/2" tall and wide, two points of the design are intentionally positioned on the same level plane for optimal hold down conditions during the milling process.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.750
Depth of Cut: 1.245
Left Cutter Head
Thickness: 1.750
Depth of Cut: 1.245
Top Cutter Head
Width: 7.781
Depth of Cut: 1.125
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.00
$155.00
(Template not needed)
$538.80
Not Needed
Total:
$892.80
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$209.00
$165.00
(Template not needed)
$572.92
Not Needed
Total:
$946.92
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$224.00
$180.00
(Template not needed)
$624.11
Not Needed
Total:
$1028.11
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
