Cove 8" - 3
Cove 8" - 3

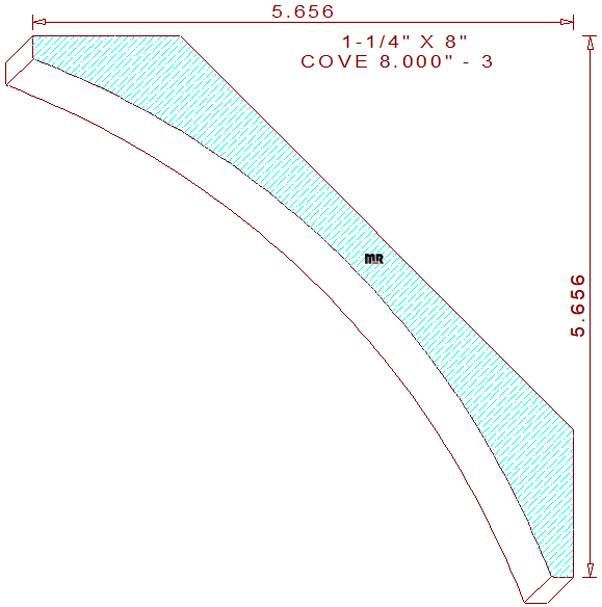

This large 8" - 3 cove mould measures 8.000" wide by 1.250" thickness, allowing the pattern to be machined sprung (laying horizontally flat) from six quarter lumber. The symmetrical concave profile is composed of a 9-23/64" cavetto leaving the thickness at 7/16" in the center, flanked by a 1/4" tall vertical line on top and a 1/4" wide horizontal line at the bottom of the pattern. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height and projection at an identical dimension of 5-21/32" tall and wide.
Utilize any of our user-friendly moulding profiles, all professionally designed by an accomplished draftsman/toolmaker with over forty years’ experience in woodworking and who was a former Weinig field service technician.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 1.090
Left Cutter Head
Thickness: 1.625
Depth of Cut: 1.090
Top Cutter Head
Width: 8.000
Depth of Cut: 0.812
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$533.00
Not Needed
Total:
$842.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$142.50
(Template not needed)
$568.00
Not Needed
Total:
$896.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$156.75
(Template not needed)
$620.50
Not Needed
Total:
$977.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
