Cove 8-1/4"
Cove 8-1/4"

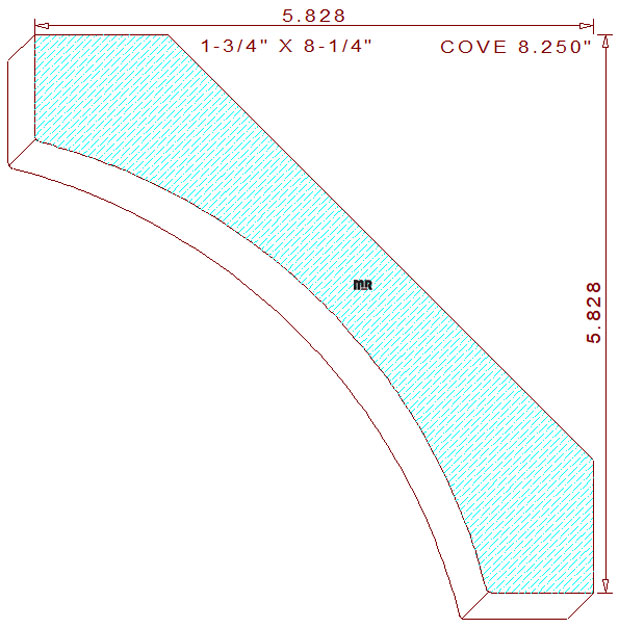

This 8-1/4" cove mould measures 8.250" wide by 1.750" thick. The symmetrical profile is comprised of a 6-1/2" radius arc in the center, connected to a 1-1/8" tall vertical line on the top and a 1-1/8" broad line at the bottom of the pattern. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height and projection at an identical dimension of 5-53/64" tall and wide.
Two high points in the design were intentionally positioned on the same plane. Our dedicated design features will assure excellent hold-down conditions while milling the detail on an industrial moulder, providing the pressure shoe is parallel to the bed plates. Utilize some of our user-friendly designs, all professionally drawn by an accomplished woodworker with over forty-two years of experience and a former Weinig field service technician.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.980
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.980
Top Cutter Head
Width: 8.250
Depth of Cut: 0.907
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$547.00
Not Needed
Total:
$856.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$142.50
(Template not needed)
$583.00
Not Needed
Total:
$911.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$156.75
(Template not needed)
$637.00
Not Needed
Total:
$993.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
