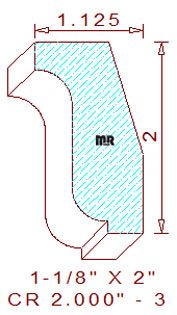

This Crown Moulding 2" - 3 measures 2.000" wide by 1.125" thickness, the profile is comprised of a elongated cyma recta flanked by vertical fillets and a horizontal fillet positioned at the bottom of the pattern. The detail is milled on the top and bottom horizontal moulder spindles, the back side bevel is seventeen degrees which sets the installed height at 2" tall with a projection of 1-1/8" wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
