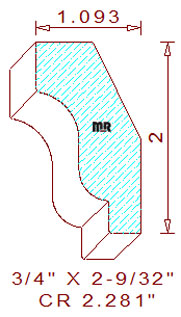

This Small Crown Moulding 2-9/32" measures 2.281" wide by .750" thickness, with a .416" depth of cut on the top horizontal set of cutters.
The stylish profile is comprised of a 1/2" tall vertical fillet on top, attached to a cyma recta in the center, and a squared fillet at the bottom of the pattern. The spring angles are fixed at twenty-six and sixty-four degree, these specific bevels set the installed height at 2" tall, with a projection of 1-3/32" wide. Search our bevels category by degree, for a set of back bevel cutters appropriate for this decorative crown moulding.
Please read our commentary about Axial Constant Position for Crown Moulding Bevels, this article will help you dial this profile in axially on the first try when milling this detail on an industrial moulder, provided the moulder is axially calibrated.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
