Crown Moulding 2-1/2" - 10

Crown Moulding 2-1/2" - 10

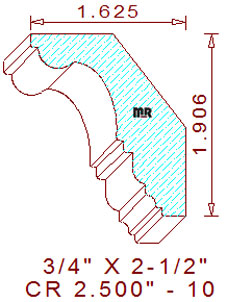

This Ornate Crown Moulding 2-1/2" - 10 measures 2.500" wide by .750" thickness, with a .530" depth of cut on the right cutters, .728" depth of cut on the left set of blades, and a .374" depth of cut on the top horizontal set of moulding knives.

The intricate profile is comprised of an elliptical shaped arc in the center, connected to a half round circle and squared fillet at the top. The lower section of the pattern consists of a series of stepped fillets, with a small cove and a 1/4" wide horizontal fillet at the bottom of the pattern. The spring angles are set at thirty-eight and fifty-two degrees, search our bevels category by this degree to find two back bevel cutters appropriate for this crown moulding design, these specific cuts set the installed height at 1-29/32" tall with a projection of 1-5/8" wide. Five high points in the design are intentionally positioned on the same level plane, this critical design feature will assure excellent hold down conditions while milling the detail on an industrial moulder, providing the moulder pressure shoe is set parallel to the moulder bed plates.

Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding profile designs. Weather you own a recently built house or older style residence, we have the ability, knowledge and experience to create moulding designs that will complement the architectural décor of your beautifully elegant home.

Profile Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
