Crown 2-1/2" - 5

Crown 2-1/2" - 5

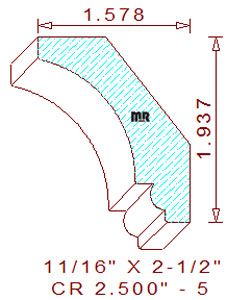

This 2-1/2" - 5 crown mould measures 2.500" wide by .687" thickness. The profile comprises a cavetto with a vertical fillet in the upper portion attached to an ovolo in the bottom section. With the spring angles fixed at thirty-eight and fifty-two degrees, the installed height becomes 1-15/16" tall with a projection of just over 1-9/16" wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
