Crown 2-17/32"
Crown 2-17/32"

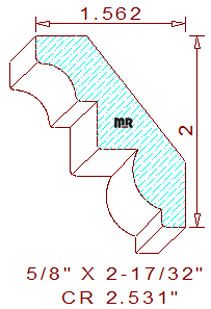

This decorative 2-17/32" crown mould measures 2.538" wide by .625" thickness. The profile is comprised of a stepped fillet in the center, which is flanked by a 3/8" radius cavetto on top and an ovolo-shaped detail on the bottom. The spring angles are fixed at thirty-eight and fifty-two degrees, which sets the installed height at 2" tall with a projection of 1-9/16" wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.418
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.418
Top Cutter Head
Width: 2.531
Depth of Cut: 0.310
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$166.50
$213.61
Not Needed
Total:
$546.61
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$176.00
$226.74
Not Needed
Total:
$578.74
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$190.25
$246.42
Not Needed
Total:
$626.92
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
