Crown 2-5/8" - 2

Crown 2-5/8" - 2

Crown 2-5/8" - 2

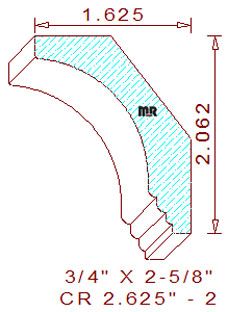

This 2-5/8" - 2 crown mould measures 2.625" wide by .750" thickness. The profile is comprised of a 1-1/4" radius cavetto in the center that is flanked by a 1/4" tall fillet on top and three cascading beads at the bottom of the detail. With the spring angles set at thirty-eight and fifty-two degrees, the installed height becomes 2-1/16" tall with a projection of 1-5/8" wide. Two of the design points have been placed on the same level plane to assist in holding down the molding on the machine bed plates while milling.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.621
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.611
Top Cutter Head
Width: 2.656
Depth of Cut: 0.410
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$161.75
$213.30
Not Needed
Total:
$536.80
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$171.25
$226.92
Not Needed
Total:
$569.42
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$180.75
$240.55
Not Needed
Total:
$602.05
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
