Crown 2-3/4" - 11

Crown 2-3/4" - 11

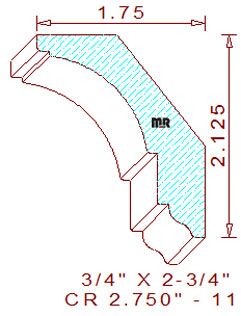

This exquisite 2-3/4" - 11 crown mould measures 2.750" wide by .750" thickness. The profile consists of a stepped fillet on top, a cavetto in the upper half of the pattern, and a 9/16" tall stepped fillet that can receive a rope or dentil mould it is attached to a stepped ogee on the bottom. When this pattern is appropriately installed, it retains a height of 2-1/8" tall, with a projection of 1-3/4" wide, the spring angles are set at 38 and 52 degrees, and the points are positioned on the same level for superior hold down while milling.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.649
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.587
Top Cutter Head
Width: 2.750
Depth of Cut: 0.397
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$166.50
$225.00
Not Needed
Total:
$567.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$176.00
$239.00
Not Needed
Total:
$600.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$190.25
$260.00
Not Needed
Total:
$650.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
