Crown 2-3/4" - 16

Crown 2-3/4" - 16

Crown 2-3/4" - 16

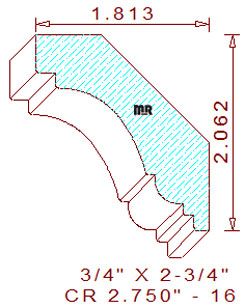

This exciting 2-3/4" - 16 crown mould measures 2.750" wide by .750" thickness. The profile comprises a notched fillet in the upper portion connected to a two-tangent radius cavetto in the center that transitions into an ovolo with another notched fillet at the bottom of the pattern. The spring angles are fixed at forty-five degrees, which sets the installed height at 2-1/16" tall with a projection of 1-13/16" wide. Three points in the design are intentionally placed on the same level plane, ensuring excellent hold-down conditions while milling this detail on an industrial molder.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.479
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.655
Top Cutter Head
Width: 2.750
Depth of Cut: 0.364
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$128.25
(Template not needed)
$218.00
Not Needed
Total:
$508.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$137.75
(Template not needed)
$232.00
Not Needed
Total:
$541.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$147.25
(Template not needed)
$246.00
Not Needed
Total:
$574.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
