Crown 2-3/4" - 17
Crown 2-3/4" - 17

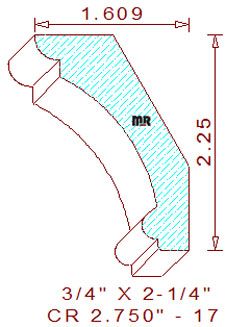

This 2-3/4" - 17 crown mould measures 2.750" wide by .750" thickness. The profile is comprised of a 1.865" radius cavetto/cove in the center, flanked by a vertical fillet attached to a quarter round bead on the top, the bottom of the pattern retains a half round bead, small vertical fillet, and a 5/16" wide horizontal fillet. The spring angles are fixed at thirty and sixty degrees sets the installed height at 2-1/4" tall with a projection of 1-39/64" wide.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.703
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.439
Top Cutter Head
Width: 2.750
Depth of Cut: 0.404
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
