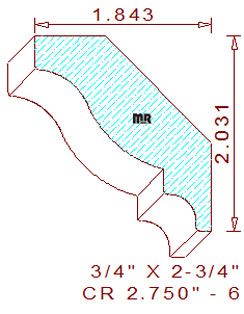

This Typical Crown Moulding 2-3/4" - 6 measures 2-3/4" wide by 3/4" thickness, the profile shape is one of the more common patterns utilized within the moulding industry, it contains fillets, both horizontal and vertical, a cyma recta and a cavetto positioned on the bottom. When the pattern is installed the height becomes 2-1/32" tall with a projection of 1-27/32" wide, spring angles are fixed at 45 degree, the points of the crown are positioned on the same plane for proper hold down during manufacturing.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
