Crown 2-3/4" - 8

Crown 2-3/4" - 8

Crown 2-3/4" - 8

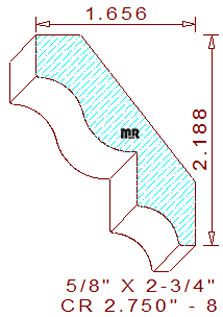

This gorgeous 2-3/4" - 8 crown mould measures 2.750" wide by .625" thick. The profile consists of three fillets, two vertical, one horizontal, a cyma recta positioned in the middle (a rope or dentil molding could be placed in this area if desired), and a cavetto located in the bottom portion of the design. When correctly installed, the height becomes 2-3/16" tall with a projection of 1-21/32" wide. The spring angles are fixed at thirty-eight and fifty-two degrees, with the points of the design positioned on the same level plane for optimal hold-down conditions during production.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.405
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.369
Top Cutter Head
Width: 2.750
Depth of Cut: 0.332
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$161.75
$218.00
Not Needed
Total:
$541.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$171.25
$232.00
Not Needed
Total:
$574.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$180.75
$246.00
Not Needed
Total:
$607.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
