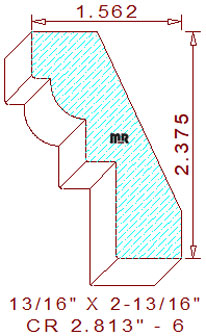

This Unique Crown Moulding 2-13/16" - 6 measures 2.812" wide by .812" thickness, with a .289" depth of cut on the right vertical cutters, .450" depth of cut on the left set of blades, and a .695" depth of cut on the top horizontal moulding knives.
The innovative profile is composed of an ovolo, attached to a 31/64" tall vertical fillet in the upper portion, the lower section consists of a 7/16" tall, and a 1-1/64" tall vertical fillets, divided by a 5/16" wide, and a 11/16" wide horizontal fillet at the bottom. The spring angles are fixed at twenty-five and sixty-five degrees, which are included in the downloadable dxf file. These specific bevels set the installed height at 2-3/8" tall with a projection of 1-9/16" wide. Two high points in the detail are intentionally positioned on the same level plane, this specialized design feature will assure excellent hold down conditions while milling the detail on an industrial moulder, providing the moulder pressure shoe is properly set parallel to the moulder bed plates.
Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding profile designs. Weather you own a recently built house or older style residence, we have the ability, knowledge and experience to create moulding designs that will complement the architectural décor of your beautifully elegant home.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
