Crown 2-7/8"
Crown 2-7/8"

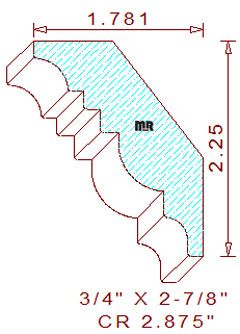

This 2-7/8" crown mould is 2.870" wide by .750" thick. The profile comprises a slightly off-centered ovolo flanked by stepped fillets and a cove in the upper portion with a small congee positioned in the bottom part of the design. The spring angles are fixed at thirty-eight and fifty-two degrees, which determines the installed height at 2-1/4" tall with a projection of 1-25/32" wide. Two points in the design are intentionally placed on the same level plane to ensure excellent hold-down conditions while milling this pattern on an industrial moulder.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.651
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.633
Top Cutter Head
Width: 2.875
Depth of Cut: 0.242
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$176.00
$231.50
Not Needed
Total:
$583.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$185.50
$246.00
Not Needed
Total:
$617.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$199.75
$267.75
Not Needed
Total:
$667.25
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
