Crown 2-7/8" - 3
Crown 2-7/8" - 3

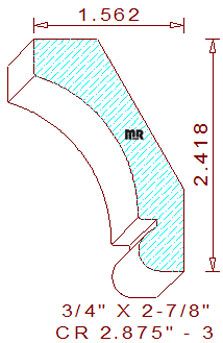

This 2-7/8" - 3 crown mould measures 2.875" wide by .750" thickness. The profile comprises a large cavetto attached to a minor quirk and a round bead at the bottom of the pattern. With the spring angles fixed at thirty and sixty degrees the installed height becomes roughly 2-7/16" tall with a projection of 1-9/16" wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.568
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.424
Top Cutter Head
Width: 2.875
Depth of Cut: 0.450
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$166.50
$231.50
Not Needed
Total:
$564.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$176.00
$246.00
Not Needed
Total:
$598.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$190.25
$267.75
Not Needed
Total:
$648.25
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
